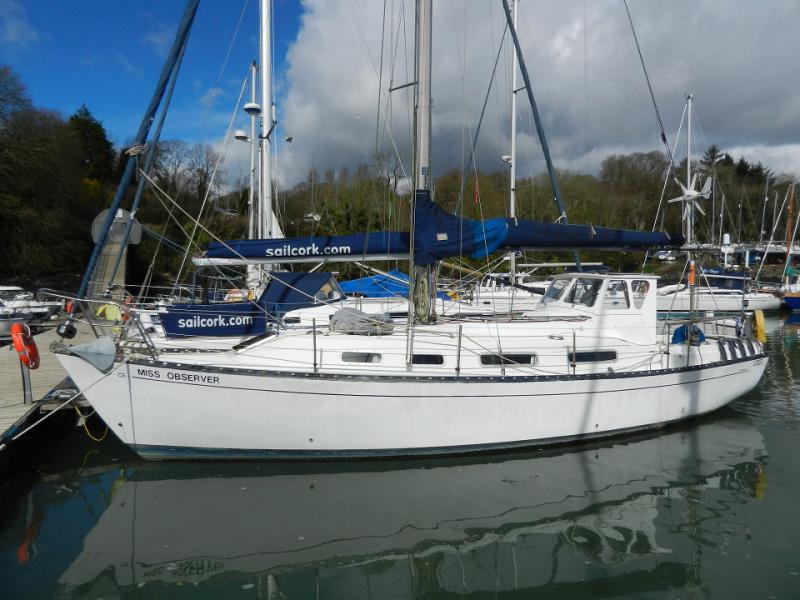

This 1978 Grampian 34 with wheel steering is in very good condition and is ready to go sailing. Her inventory includes a (2008) Beta 28HP diesel engine, six berths, hot water, slab reefing mainsail, furling genoa, self tailing genoa sheet winches, (fixed) sprayhood (giving great shelter), chartplotter, radar, autopilot, 2016 survey and more!
ADDITIONAL SPECS, EQUIPMENT AND INFORMATION:

Boat Name
"Miss Observer"

Builder: Porter and Haylett, Norfolk.
Designer: Van de Stadt
Keel: Fin

Dimensions
LOA: 10.30 m
Beam: 3.85 m
Maximum Draft: 1.60 m
Displacement: 5352 kgs
Ballast: 2345 kgs

Engine
Total Power: 28 HP
Engine Brand: Beta
Year Built: 2008
Engine Model: B-28 H/E
Engine Type: Inboard
Engine/Fuel Type: Diesel
Engine Hours: 350
Propeller: 3 blade propeller
Drive Type: Direct Drive
Engine Power: 28 HP

Cruising Speed: 6 knots
Maximum Speed: 7 knots

Tanks
Fresh Water Tanks: 2 (100 Liters)
Fuel Tanks: 1 Stainless steel (110 Liters)

Construction

GRP hull and deck. Long fin keel with skeg hung rudder.

Bolted on lead keel (backing plates replaced 2010)

Rig & Sails

Deck stepped Aluminium mast with a single set of spreaders

Furlex roller reefing (2000)

Hood furling genoa 2000 (uv strip 2015) in good condition

Slab reefing mainsail in good condition

Standing rigging replaced in 2000

Lazy jacks and stackpack fitted in 2000

Spinnaker Pole (no spinnaker)

Main halyard and reefing lines are led back to the cockpit

Coachroof winches x 2

Mast mounted winches x 2

Cockpit winches x 4 including 2 x two speed selftailers

Adjustable main sheet traveler just forward of the wheel and binacle in the cockpit

Accommodation
6 berths

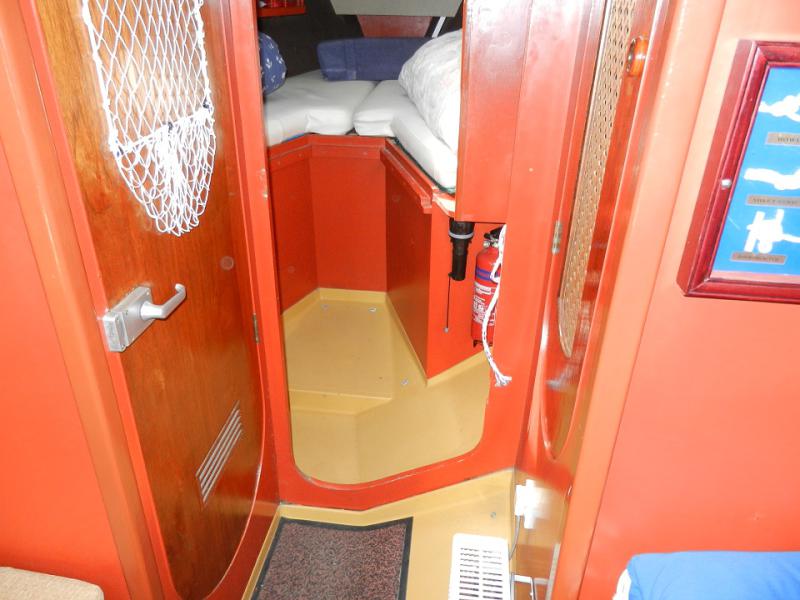

Forward Cabin

V berth can convert to a double berth,

Hanging locker and shelves

Opening deck hatch and storage under the berth

Heads compartment is between the forward cabin and saloon to port

Jabsco marine toilet (large bowl)

Hand basin with hot and cold mixer tap (tap extends to form shower head)

Mushroom vent, storage areas, mirror etc.

Hanging locker opposite to starboard

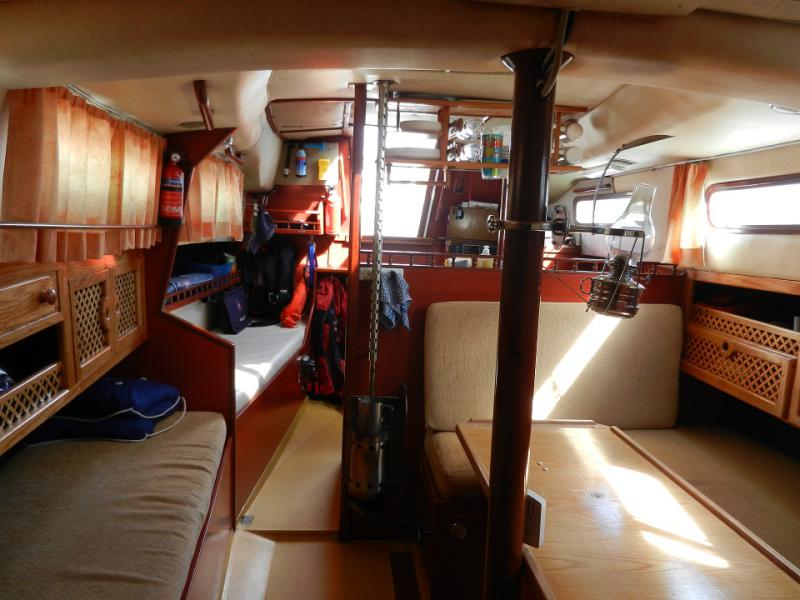

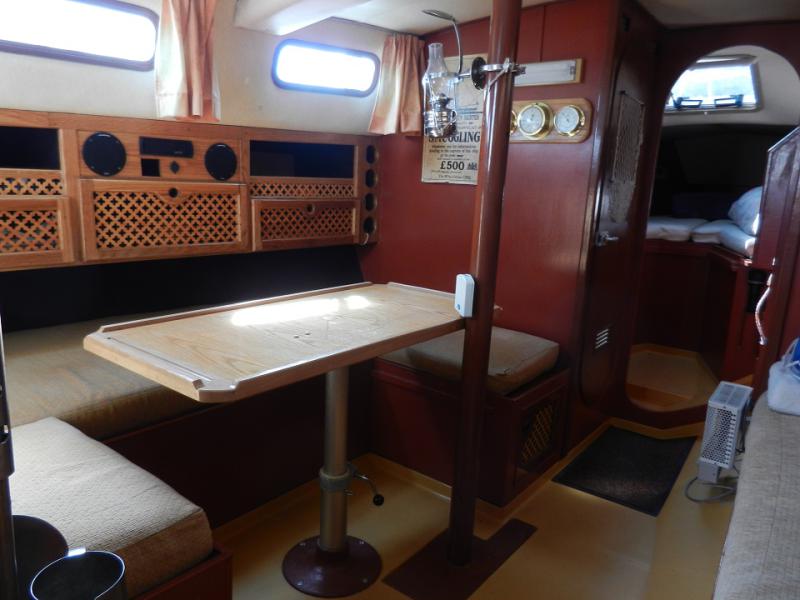

Saloon: U-shaped settee to port with a saloon table that can convert to a double berth. Single settee berth opposite to starboard. 2006 saloon upholstery. Opening deck hatch, Force 10 kerosene cabin heater and loads of lockers.

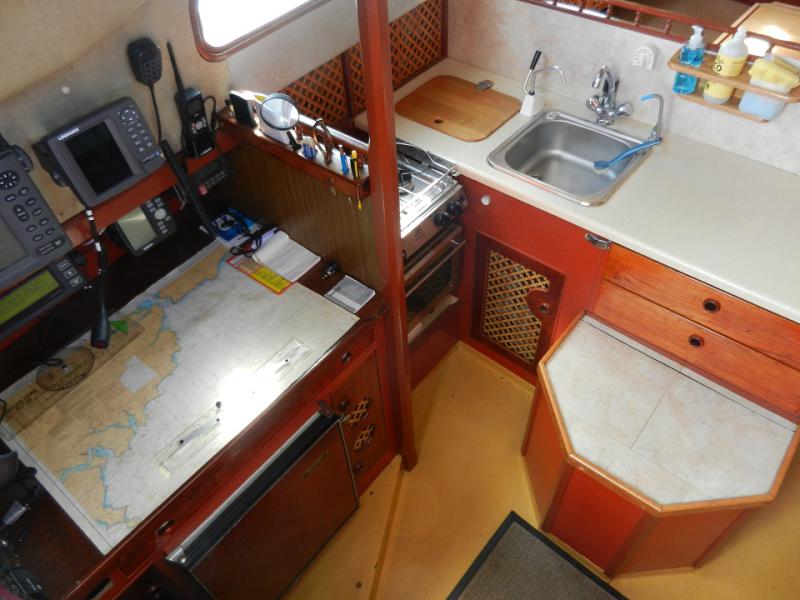

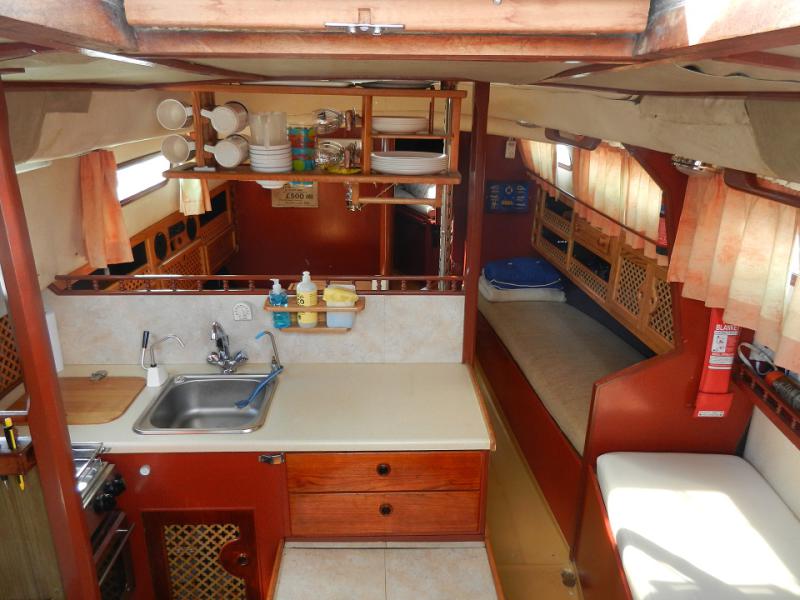

Galley is L-shaped to port, aft of the saloon.

Plastimo 2 burner gas cooker with grill and oven with fiddles and flame failure on all burners

Stainless steel sink with hot/cold mixer tap and whale hand pump (20 litre drinking water tank).

Isotherm fridge mains or 12v

Pressurised water system with hot water (from the engine)

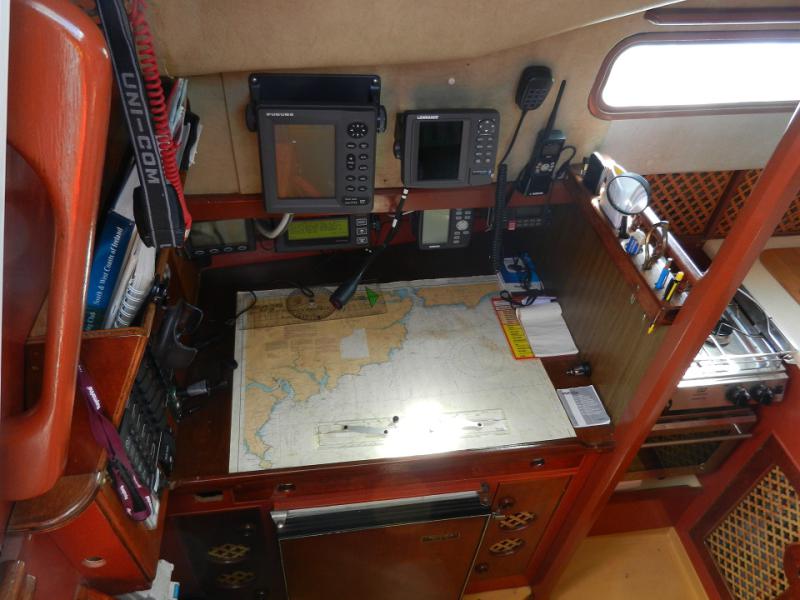

Chart table with chart storage is outboard facing to port and is aft of the galley.

Single berth opposite to starboard with shelving.

Navigation
ON DECK

Binnacle compass

Nasa Clipper Wind (speed & direction)

Nasa Clipper Boat speed

Nasa Clipper depth

Nasa Clipper Fluxgate compass

Nasa Clipper GPS

CHART TABLE

Garmin 120 GPS

Nasa DSC VHF

Nasa mob system

Nasa navtex pro

Lowrance 1550 chart-plotter

Furuno 1715 Radar

Raymarine ST6000g inboard autopilot connected to plotter and remote control

Sony stereo with saloon and cockpit speakers with remote

Avtex Led tv/dvd with Saor View

Electrical

Shore power connection with Sterling Smart Charger

RCD trip protection and two 220v interior sockets

4 x 110ah Service batteries (2011 approx.)

1 x 60ah Starter battery (2011 approx.)

Sterling split charger from alternator to batteries

Rutland 913 wind genny

3 x 20w solar panels

Hrdx charge controller for wind and solar

600w invertor with it's own socket

Lofrans 500w anchor windlass

Auto bilge pump

Bilge blower

Stainless steel windscreen wipers on pilot house

Bi color at bow, steaming light, stern light and tricolor at the masthead

Interior lighting over 2 circuits, fluorescent, led and conventional.

On Deck

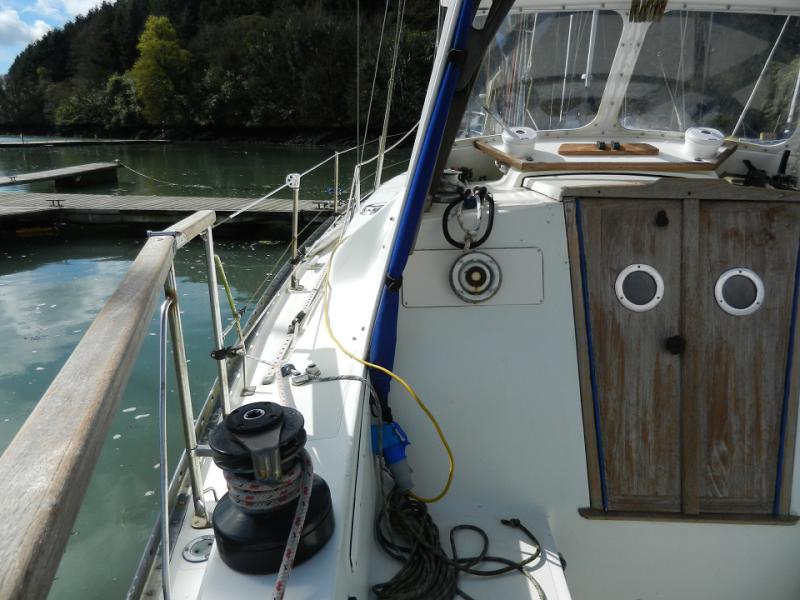

Polywood pilothouse (instead of sprayhood) with canvas extension and polycarbonate windscreen with wipers (all fitted in 2011). It is very effective.

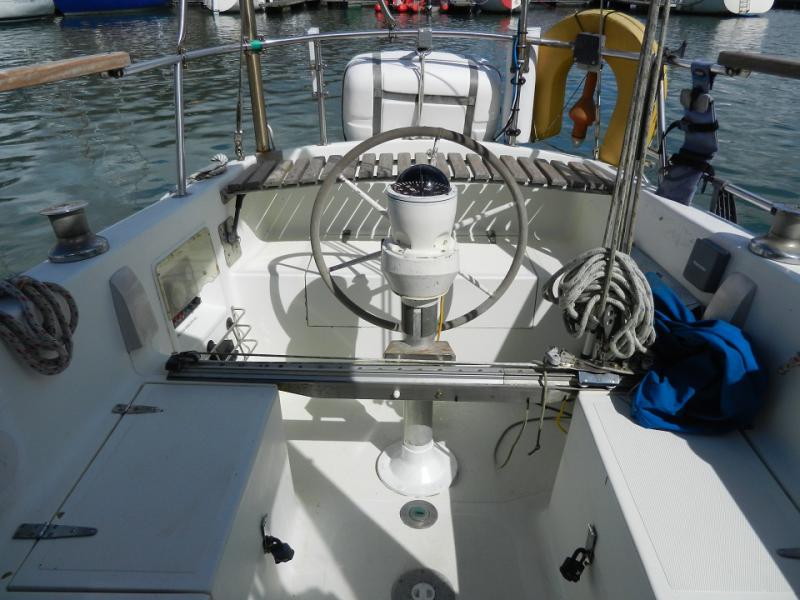

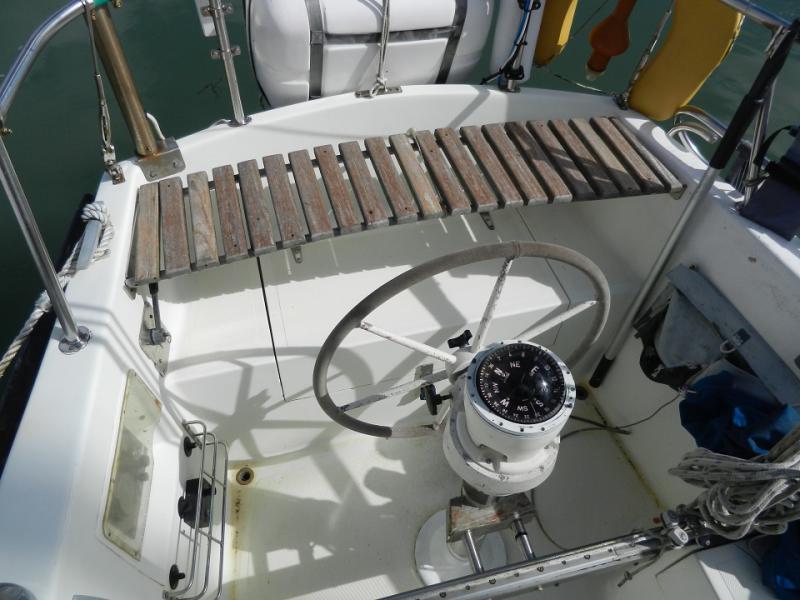

Wheel steering (wheel covered in leather)

Fenders and various warps

2002 Gebo hatches

6 x Mooring cleats

Separate gas locker with outboard drain

Manual bilge pump

Oceane 12 anchor and spare CQR

60 metres galv. chain

Removable Cockpit table

Deck Jammers on the coachroof

Pulpit, pushpit, stanchions, guardrails and opening gates

Safety

Webbing jackstays port and starboard

4 Person liferaft in a canister on stern bracket (service required)

Nasa mob base station with 3 fobs

Horseshoe bouy with light

Inflatable danbouy with light

Stainless steel boarding/swim ladder

Rechargeable fog horn (hand pump)

Smoke and co2 alarms

Emergency tiller

Echomax radar reflector

Fire Blanket

3 x Fire Extinguishers

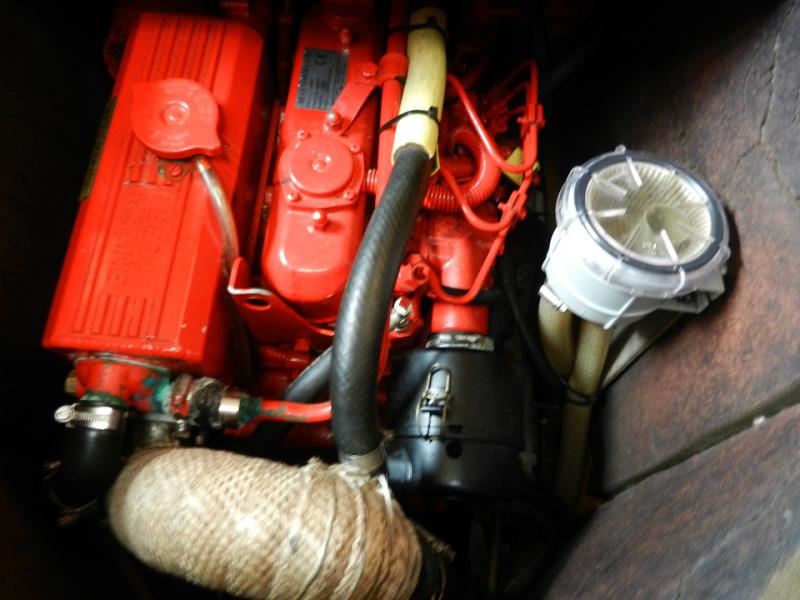

More Engine detail

3 blade prop thru bullflex coupling

Vetus water strainer on seawater intake

Anti siphon loop

High rise stainless exhaust elbow

Oil and filter, gearbox oil and fuel filters changed in 2016

Other

2016 Hull survey

3 bladed bronze prop and rope cutter (fitted 2008)

Hull and shaft anode (2015)

Broker's Comments
"Miss Observer" has been very well looked after. She has been in present ownership since 2001. The owner has been upgrading her continually and she is ready for the 2016 season.
